Arizona Pro-V

Don’t Let Bad Lighting Halt Play


Don’t Let Bad Lighting Halt Play


Model Numbers

Model Number Wattage Lumens
iQARI-420 420 watts 71,400 Lm



Construction Features

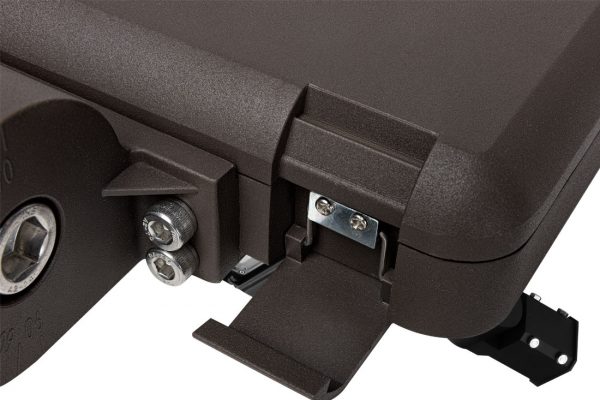

  1.  Quick Release Design
  2. Power isolation on OPEN
  3. Class I / Class II Dimmable Driver
  4. Photoelectric Cell Option
  5. Mounting Options – See Below
  6. Spigot Size Slip Fit 60mm OD


Light Source: Lumileds 5050
Body: Die Cast Aluminium Alloy
Body Colour: RAL 9004 Signal Black
Fasteners: Stainless Steel
Colour Temperature: 5000K ( also available in 3000K, 4000K & NSP Amber* options )
Average LED and Control Gear Life: L70 >50,000 hrs Ta 25*c
Beam Angle: T3VS
Efficacy: 170Lm/w
CRI: 80
Cut Off Classification: Full Cut Off ( BUG rating = 0 )
Lens Material: Mitsubishi Optical Grade Polycarbonate UV Rated


Power Supply: Inventronics 100-277Vac(347-480Vac option)
Dimming Options: 0-10v / PMW / Timer / DALI
Protection: 6kV Line-Line, 10kV Line-Earth(10Kv & 20Kv SPD available)
Power Factor: > 0.9
Connection Lead: 1.5m Rubber Flex
Ingress Protection Rating: IP66
Impact Rating: IK10
Certification: RCM, EMC, CE
Warranty: 3 Years

Size and Weight

Model Number Weight Size (in mm)
iQARI-420 10.5kg 75 x 360 x 77 x 165 x 750 x 150
