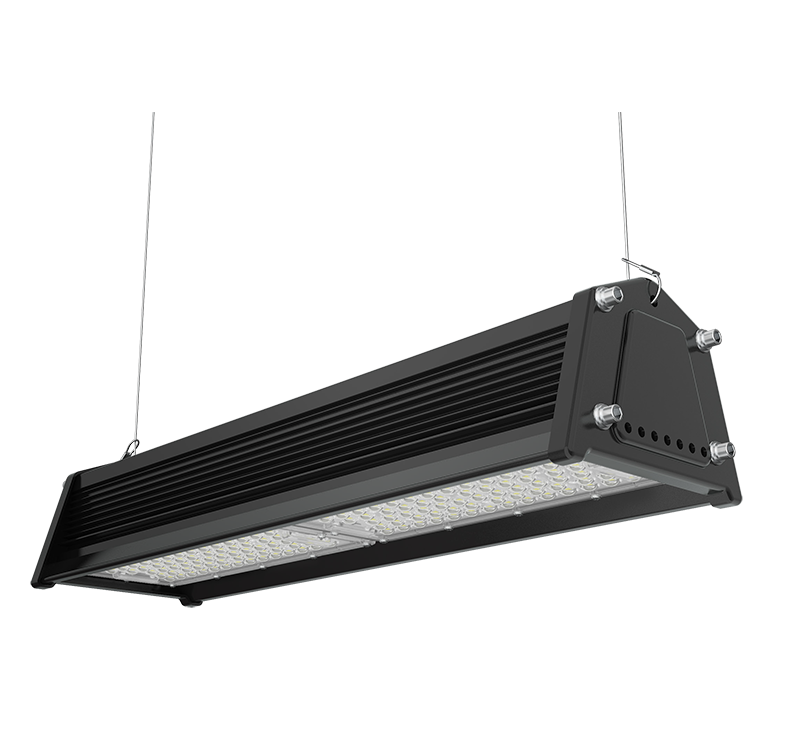

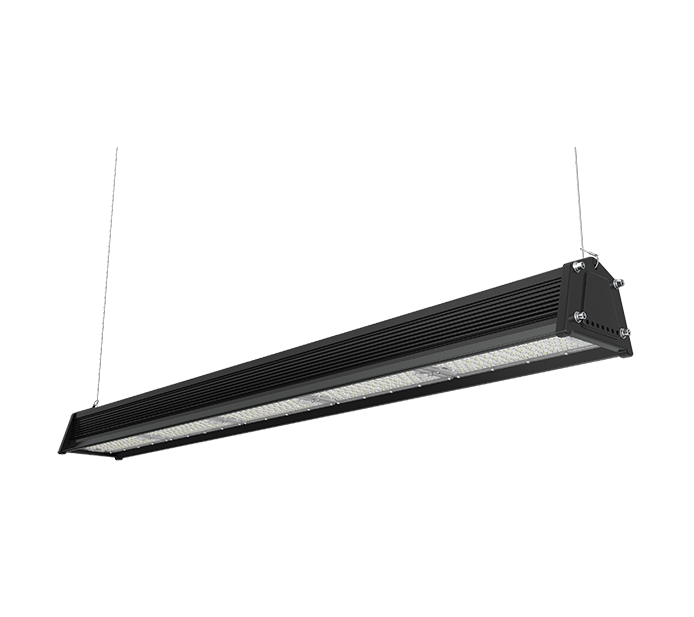

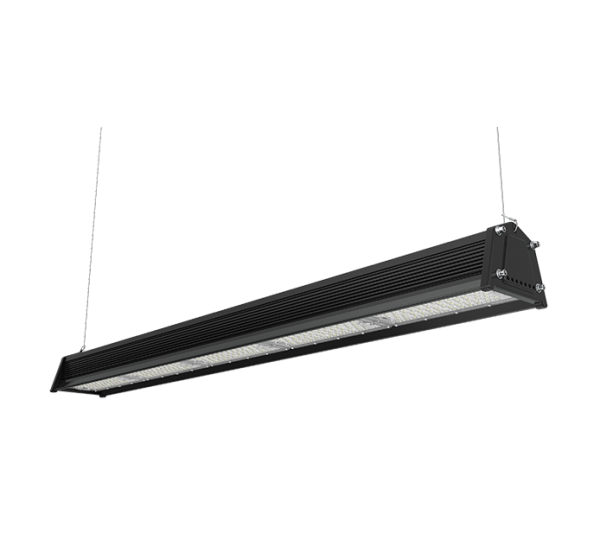

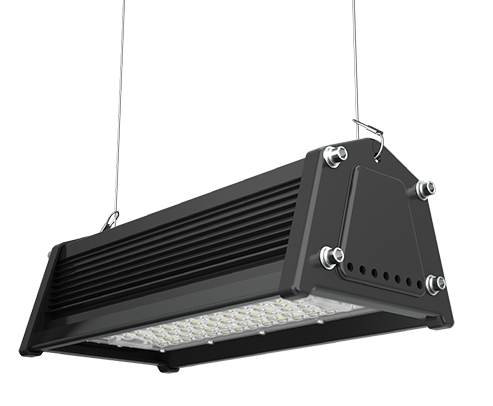

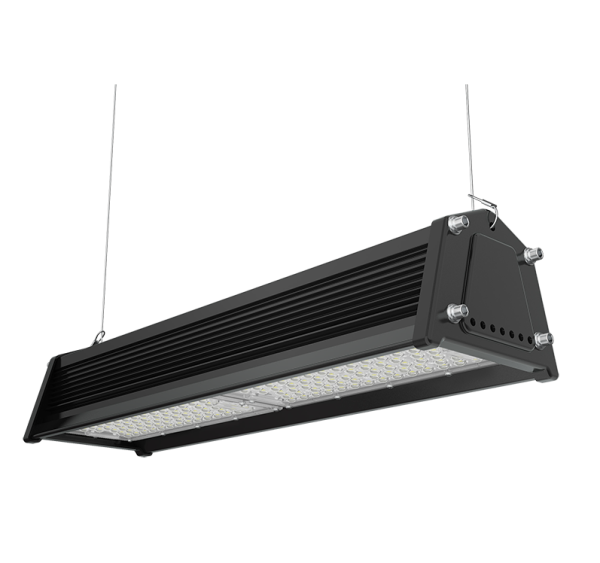

SABRE II
Premium Asymmetrical LED High Bay
- LED alternatives to 250w and 400w HID High Bays
- High quality industrial construction
- Phillips-Lumileds LED Chips for a superior light output
- High lumen output with over 120 Lm/W
- Mean Well HLG commercial series driver
- Surface or suspension mount
- IP66 Ingress protection
- IK10 Impact protection
- Three metre rubber flex lead and plug
- Three year warranty
Description
Premium Asymmetrical LED High Bay.
Model Numbers
| Model Number | Wattage | Colour |
|---|---|---|
| SAB100AHB | 100 watts | Cool White 5000K |
| SAB150AHB | 150 watts | Cool White 5000K |
Technical
Light Source: Phillips Lumileds
Body: Alum. Powder-coated body, optical PMMA – mounting brackets supplied with suspension kit & surface mount brackets
Colour Temperature: 5000K Cool White
Average LED and Control Gear Life: >50,000 hrs
Beam Angle: Asymmetrical 70° x 30°
Efficacy: 120Lm/W
CRI: >72
Cooling: Conduction, Convection
Operating Range Tc: -40°c – 70°c
Electrical
Power Supply: Mean Well HLG Commercial Series
Protection: Over Voltage, Short Circuit and Over Temperature
Power Factor: 0.95
Connection Lead: 3m UV Resistant 3 Core Flex & Plug
IP Rating: IP66
IK Rating: IK10
Total Harmonic Distortion (THD): <15%
Certification: AS/NZS (RCM)
Electrical Safely: AS/NZS 60598.2.2, AS/NZS 4417 (RCM)
Size and Weight
| Model Number | Weight | Size (in mm) |
|---|---|---|
| SAB100AHB | 3.66kg | 634 x 136 x 93 |
| SAB150AHB | 5.15kg | 926 x 136 x 93 |
