TECHNICAL
| Light Source | Lumiled |
|---|
| Body | Aluminium Alloy |
|---|
| Colour Temperature | 5000K (3000K, 4000K Optional) |
|---|
| Average LED & Control Gear Life Projection | >164000 hrs L70 |
|---|
| Beam Angle | 60°/120° |
|---|
| Efficacy | 160 Lm/W |
|---|
| CRI | Ra70 |
|---|
| Mounting Options | Suspension Mount / Bracket Mount |
|---|
| Housing Colour | Black |
|---|
ELECTRICAL
| Wattage | 200W |
|---|
| Power Supply | Inventronics |
|---|
| Dimming Options | DALI |
|---|
| Protection | 6kV line-line, 20kV line-earth |
|---|
| Power Factor | >0.92 |
|---|
| Ingress Protection Rating | IP65 |
|---|
| Impact Rating | IK08 |
|---|
| Certification | RCM |
|---|
ORDER CODES
| Model | CCT | Lumens | DIMENSIONS (MM) | Weight |
|---|
| SAT200-HT-19UGR SAT200- HT | 5000K | 32000 Lm | 455 455 360 | 7.89 kg |
KEY FEATURES

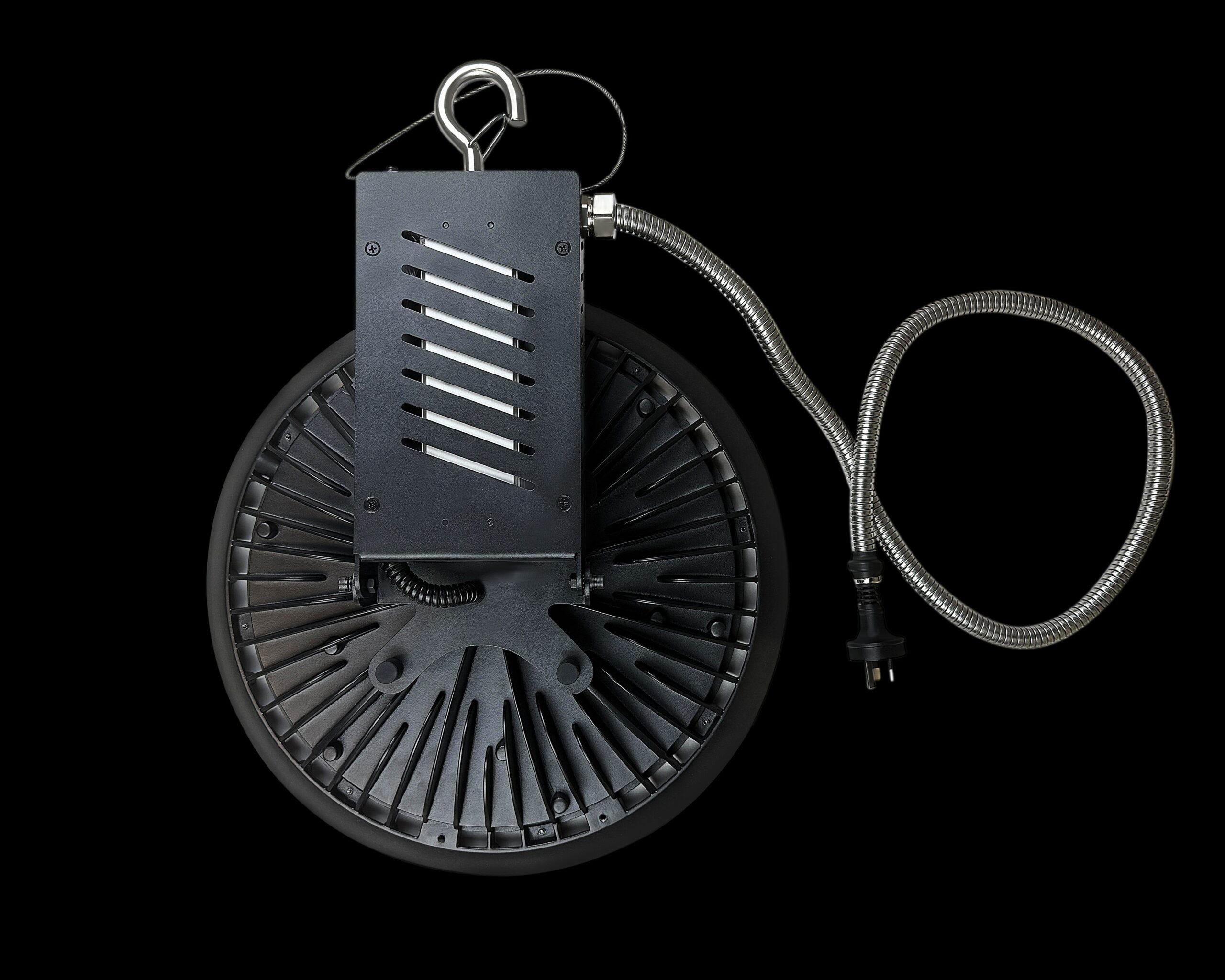

| Cold-forge heat sink with excellent heat dissipation while keeping the lamps in a smaller size. |
