VUSO 66
Features
- A wide range of wattages to meet all requirements.
- UV protected polycarbonate lenses – Multiple optical lens patterns are available to meet all requirements.
- High pressure die-cast aluminium.
- Premium dual coat paint finish (chemical-resistant epoxy primer and sealed polyester top coat) to IQL specified surface treatment procedures.
- Respirator valve fitted.
- High Impact resistant IK09 Tempered Glass (10 Jules).
- High quality SELV LED drivers with 10KV surge protection.
- Dimmable 1-10v drivers 100 / 150 / 200 / 300.
- Stainless steel powder coated angle bracket for ease of installation.
- Hardware is all 316SS and has been Geomet plated for extra life long protection.
- None perishable 1m rubber lead 3 x 1.0mm.
- 7 Year Warranty.
Description

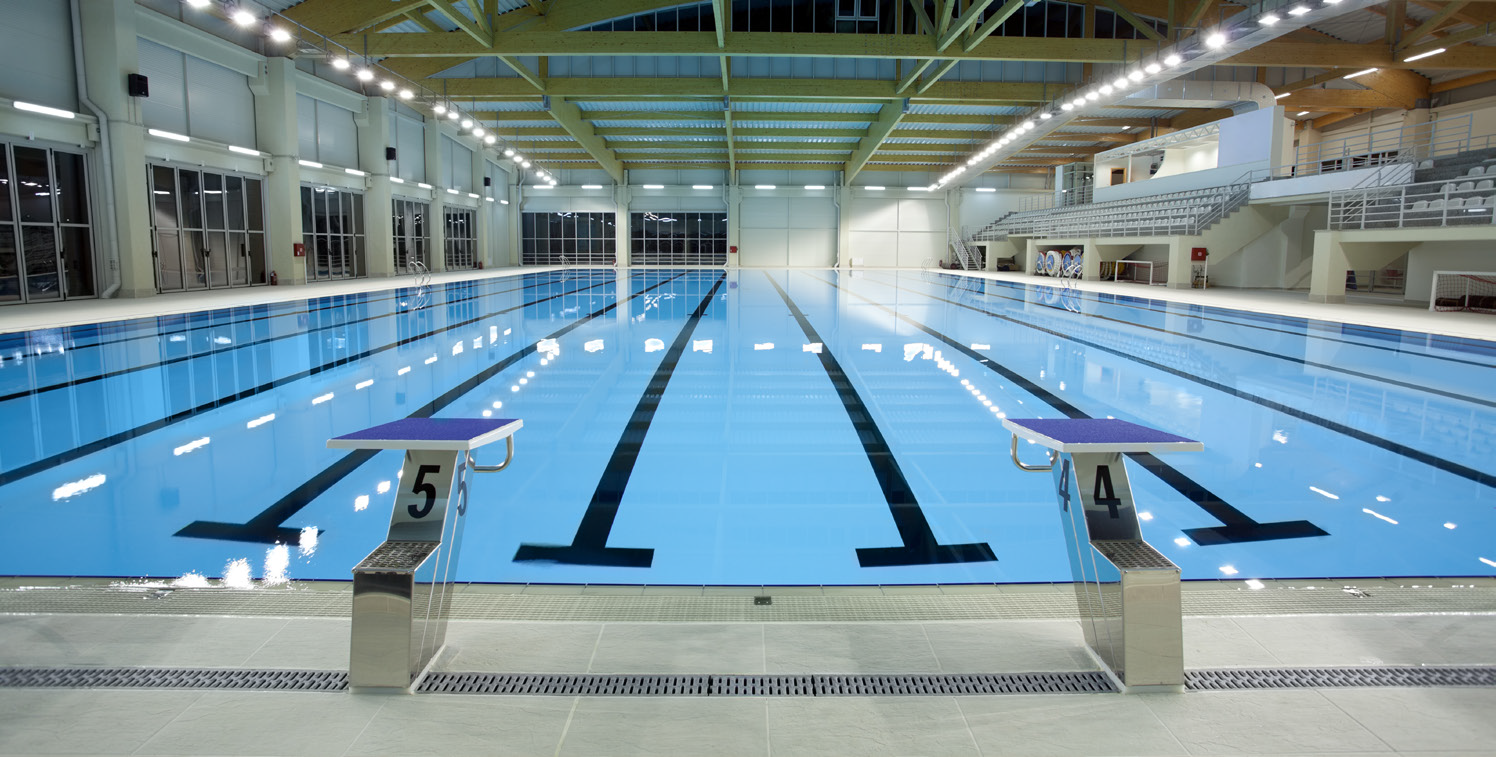

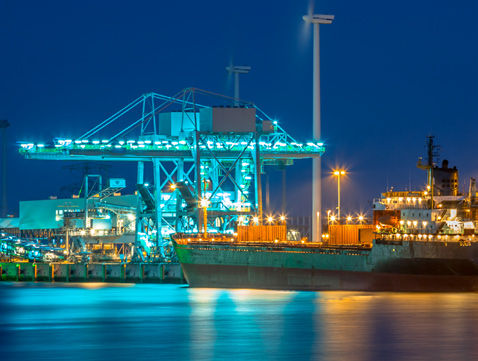

Designed for the Harshest Environments, inlcuding Coastal Applications, Indoor Aquatic, Marine, Mining, Low/High Temperatures.
| Model Number | Wattage | Lumens | Light Colour |
|---|---|---|---|
| VUS30 | 30 watts | 4,500Lm | Cool White 5000K |
| VUS50 | 50 watts | 7,500Lm | Cool White 5000K |
| VUS100 | 100 watts | 15,000Lm | Cool White 5000K |
| VUS150 | 150 watts | 22,500Lm | Cool White 5000K |
| VUS200 | 200 watts | 30,000Lm | Cool White 5000K |
| VUS300 | 300 watts | 45,000Lm | Cool White 5000K |
Technical
Light Source: Nichia (Japanese)
Housing Material: High Pressure Die-Cast Aluminium
Colour Temperature: 5000K ( other options and NSP Amber* available)
Average LED Life Projection: >100,000 hrs
Beam Angle: Asymmetrical 60 x 125 (other options available on request)
Efficacy: Min 150 Lm
CRI: > 70
Operating Range Tc > -40°c ~ 65oc
Electrical
Power Supply: Inventionic 127-300 VAC
Input Protection: DM 6KV, CM 10KV
All-Around Protection: OVP, SCP, OTP
Power Factor: > 0.96
Connection Lead: 1.5m UV Resistant Rubber 3 Core Flex
Ingress Protection Rating: IP66 / IP67
Impact Rating: IK09 ( 10 jules )
Warranty: 7 Years
Size and Weight
| Model Number | Size (in mm) |
|---|---|
| VUS30 | 267 x 228 x 55 |
| VUS50 | 267 x 228 x 55 |
| VUS100 | 314 x 269 x 61 |
| VUS150 | 360 x 302 x 67 |
| VUS200 | 398 x 343 x 70 |
| VUS300 | 470 x 406 x 80 |
